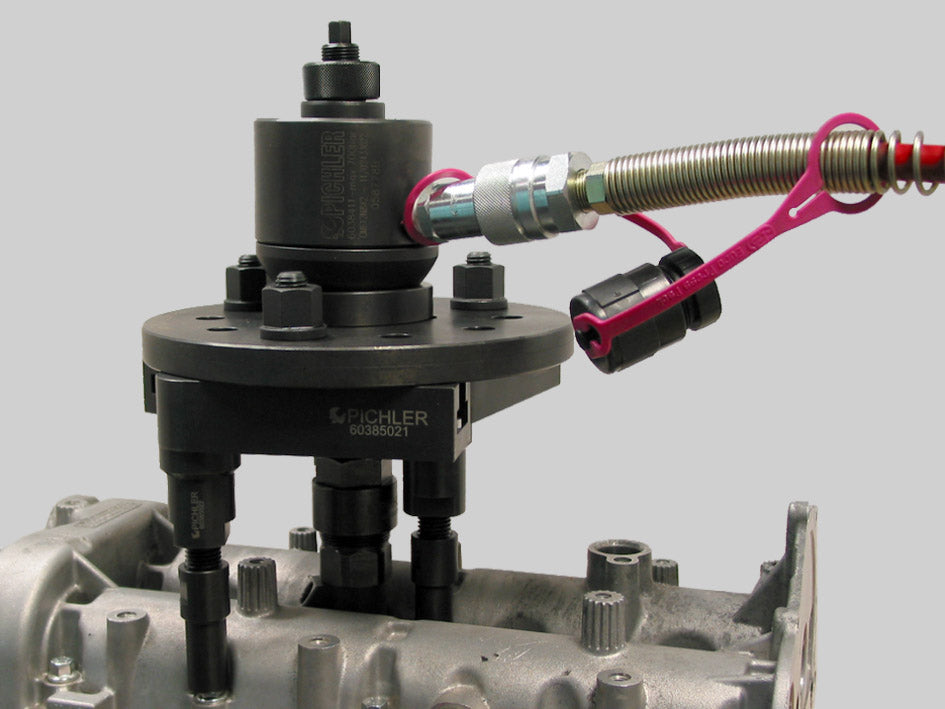

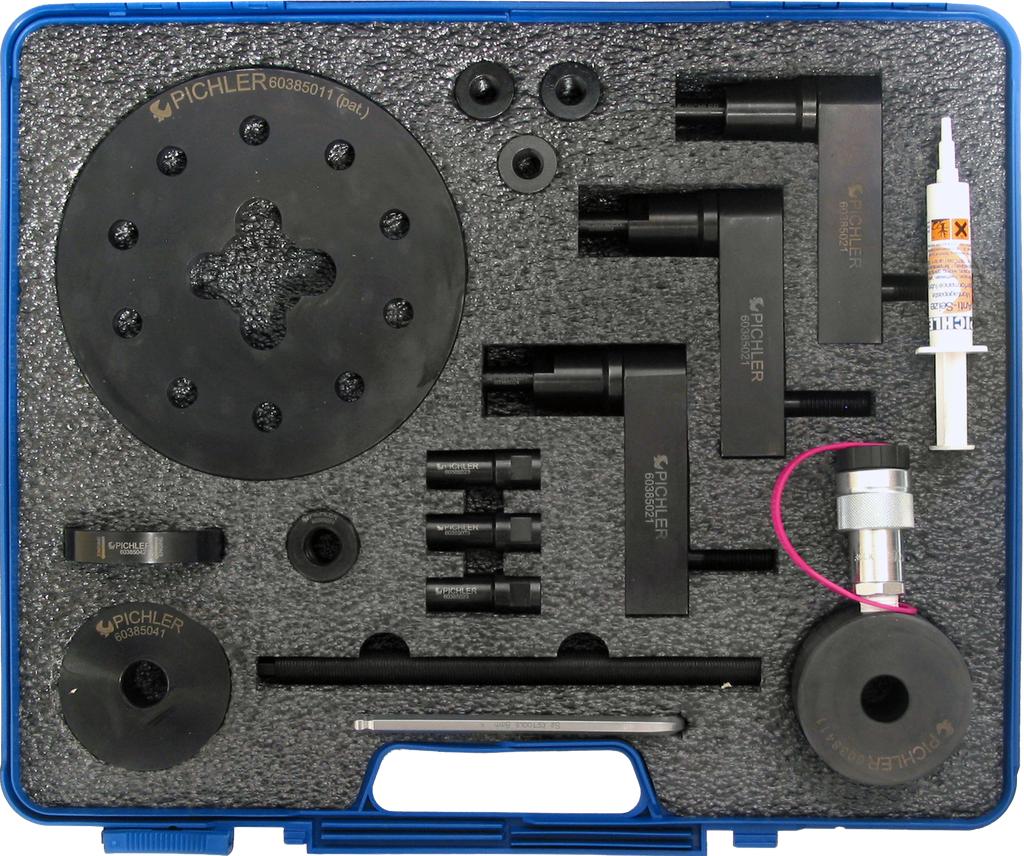

Universal injector removal kit with 12 t hydraulic cylinder

• Spindle with connecting thread M18x1.5
• Height adjustable pivot system
• For straight and angled mounted injectors

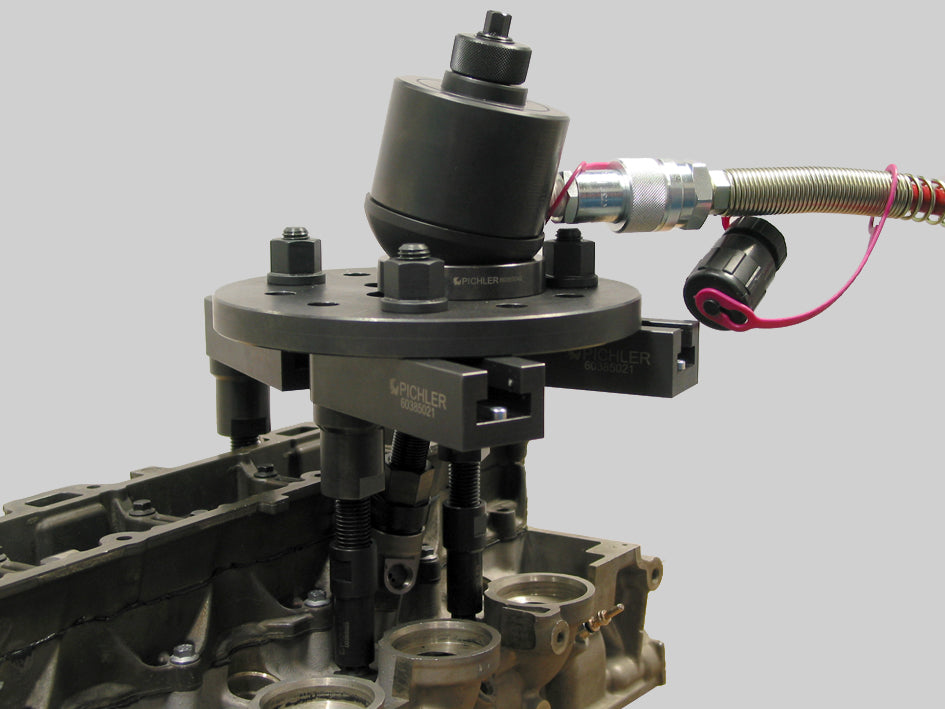

Universal injector removal tool for removing stuck diesel injection nozzles. The support disc is placed on three points with the height-adjustable support feet and provides a secure & stable cylinder head support, which can be adjusted to any position up to a Ø of 300 mm. With the optional adapter set (60384660 / 60384665), common rail injectors from a wide range of manufacturers (Bosch, Siemens, Delphi, etc.) can be connected to the pull spindle of the extraction tool and removed from the cylinder head with the pulling force of a 12 tonne hydraulic cylinder.

Suited for: universal e.g. MB646, Opel, Fiat 1.3l
