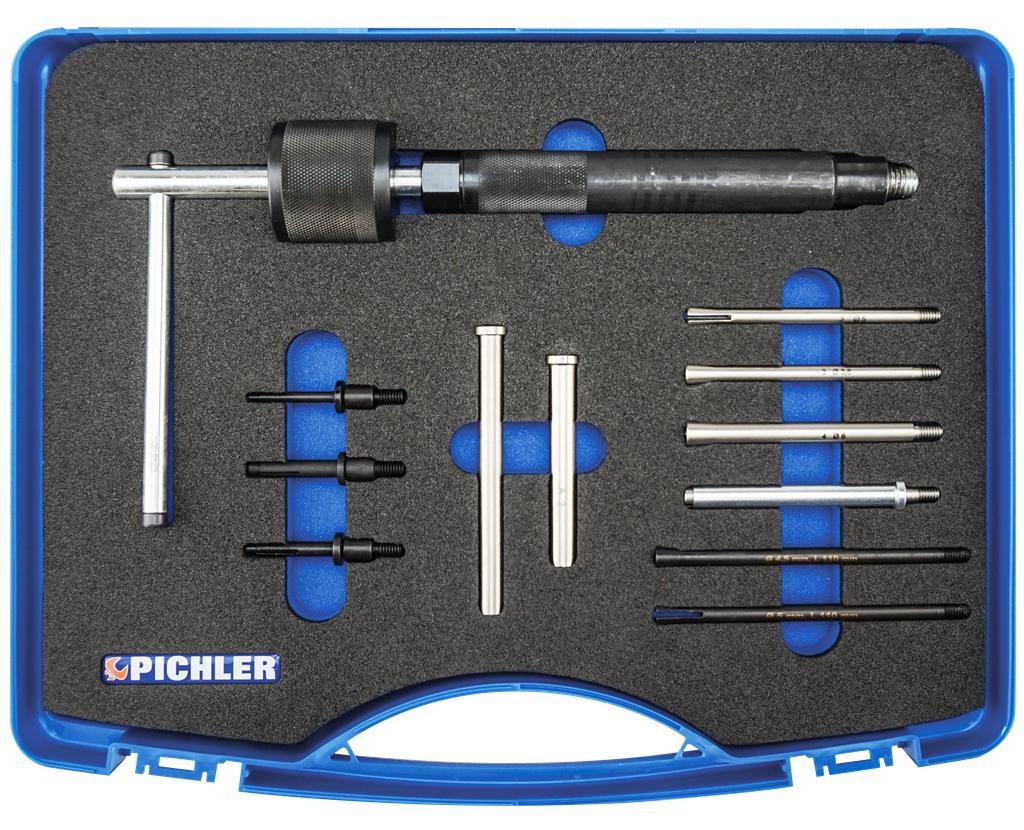

Universal Glow Plug Heating Element Removal Kit

• Universal
• for all current glow plug sizes
• removing the cylinder head is not required

Use:

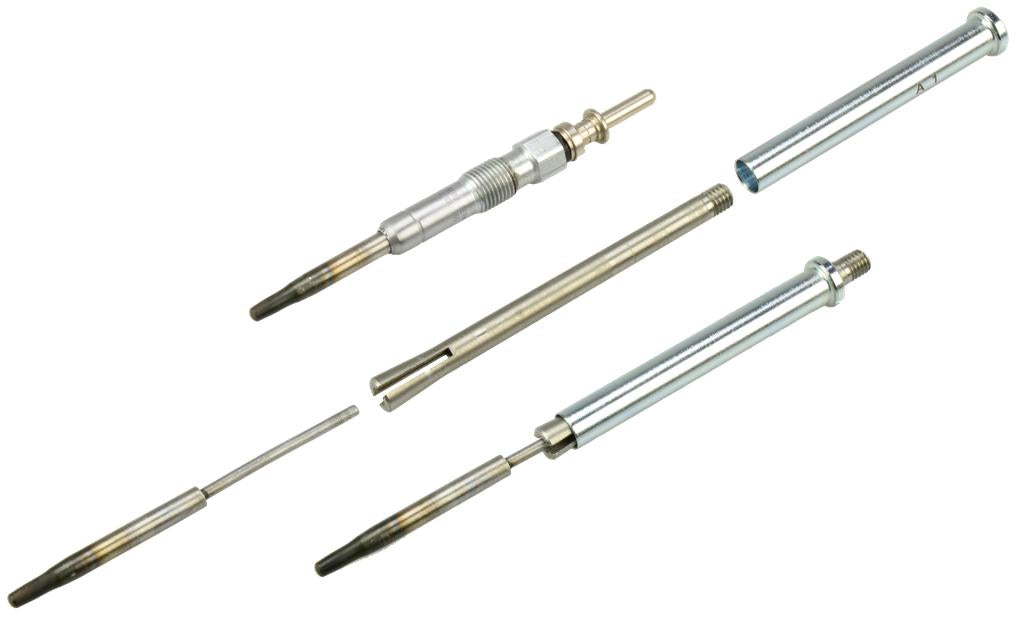

Using the collets, a torn heating element can be removed without removing the cylinder head. If the lower body of the glow plug is also torn off and still is stuck, this also can be removed with the different expanding collets included in this set.

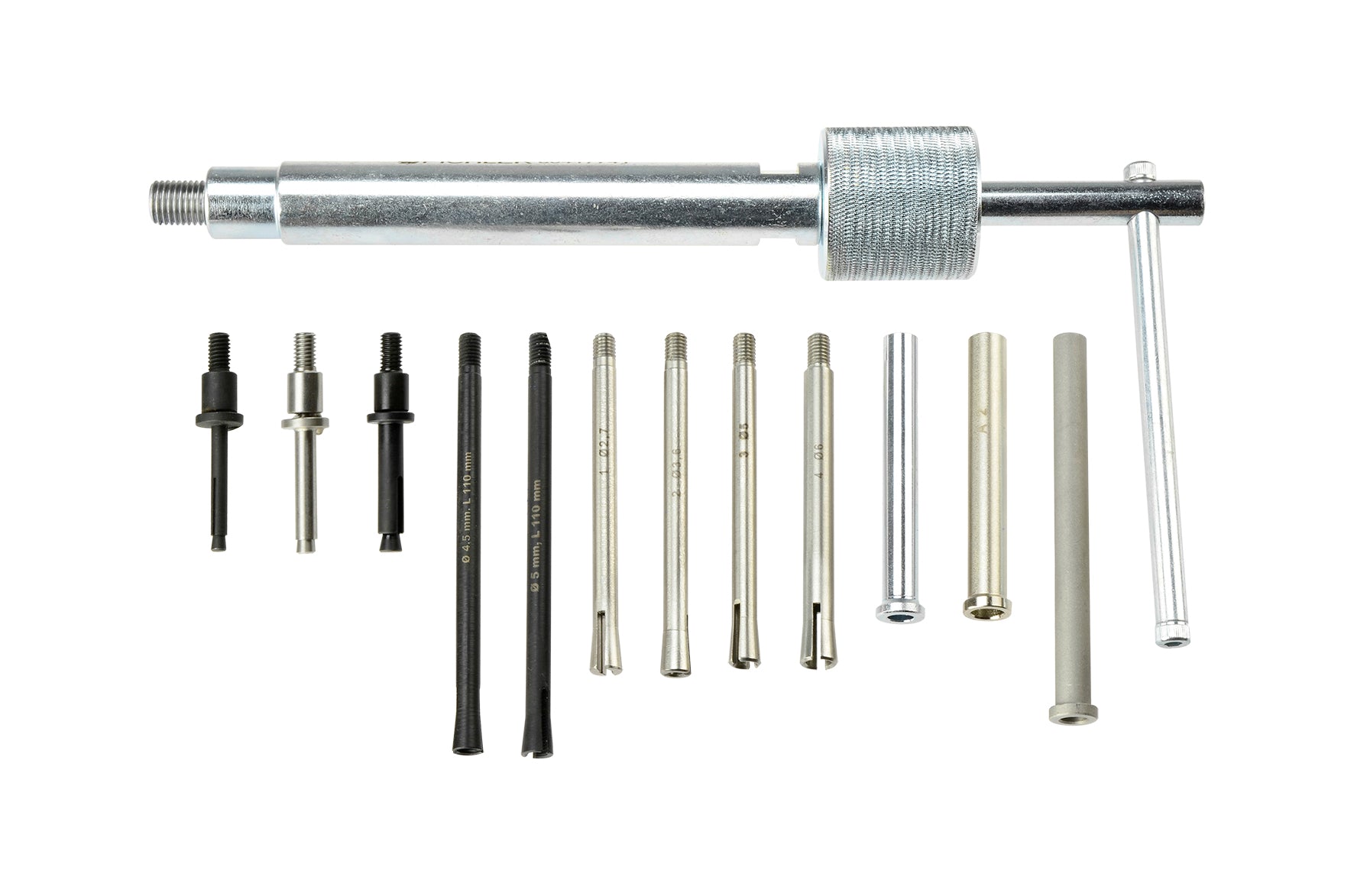

Content:
60417752: Expanding Collet, Outer diameter 4,3 mm (M8)
60417743: Expanding Collet, Outer diameter 5,5 mm (M10)
60417753: Expanding Collet, Outer diameter 6,4 mm (M12)
60417756: Collet Long Version 110 mm, Inner diameter 4,5 mm
60417757: Collet Long Version 110 mm, Inner diameter 5,0 mm
60417745: Colletn, Inner diameter 2,7 mm
60417746: Colletn, Inner diameter 3,6 mm
60417749: Colletn, Inner diameter 5,0 mm
60417748: Colletn, Inner diameter 6,0 mm
60417744: Receiving Sleeve A1 for Collet, Ø 2,4 mm, Ø 3,6 mm and Ø 5 mm
60417747: Receiving Sleeve A2 for Collet Ø 6 mm
60417754: Receiving Sleeve A3 for Collet Ø 4 mm and Ø 5 mm lang (110 mm)
60417741: Glow Plug Heating Element Removal Kit Basic Device
