Injector-removal tool BMW
Couldn't load pickup availability

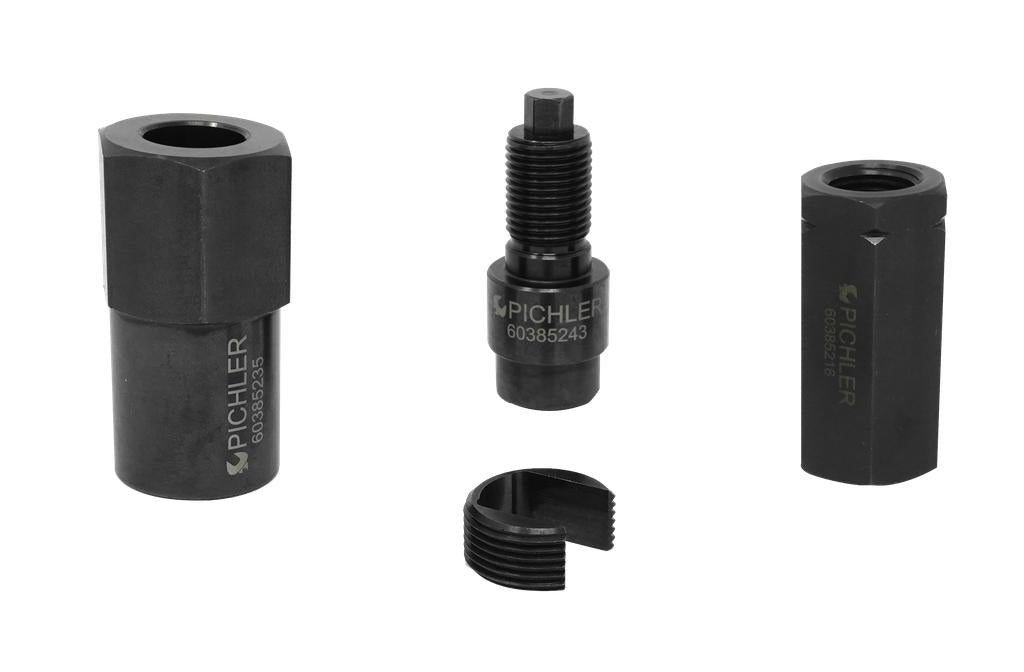

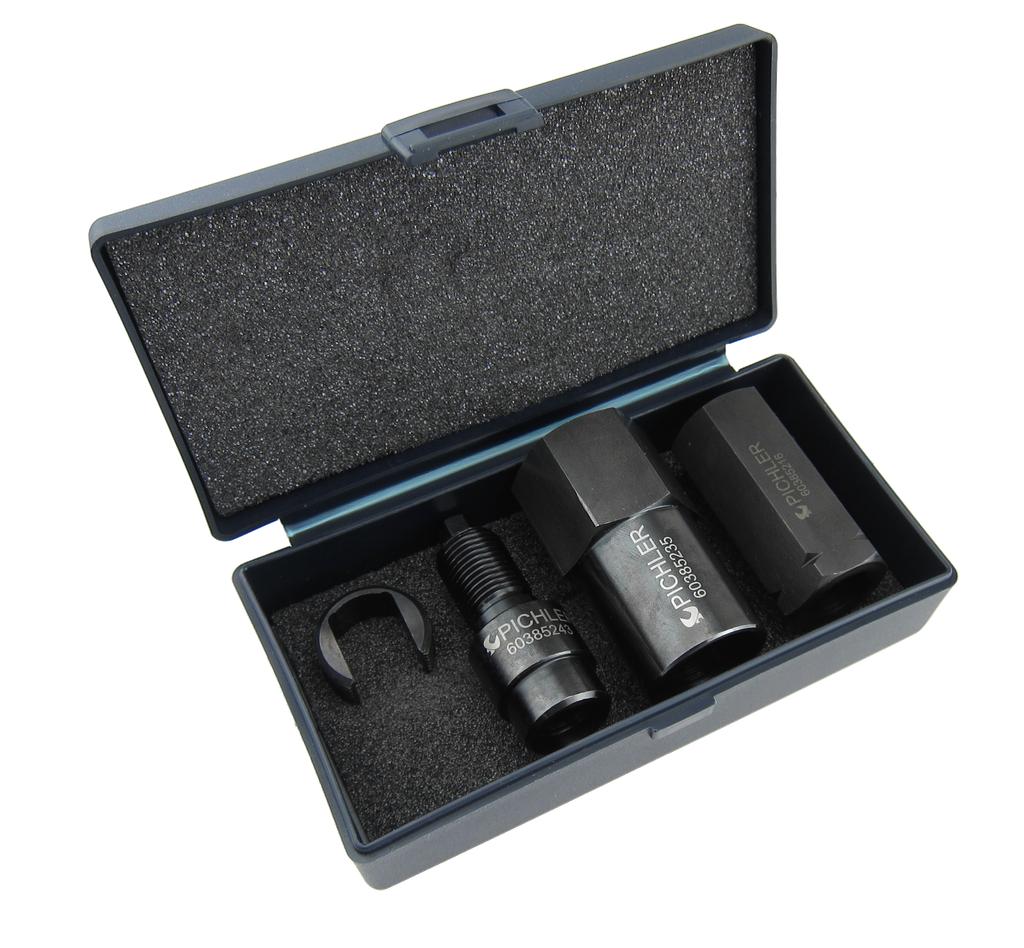

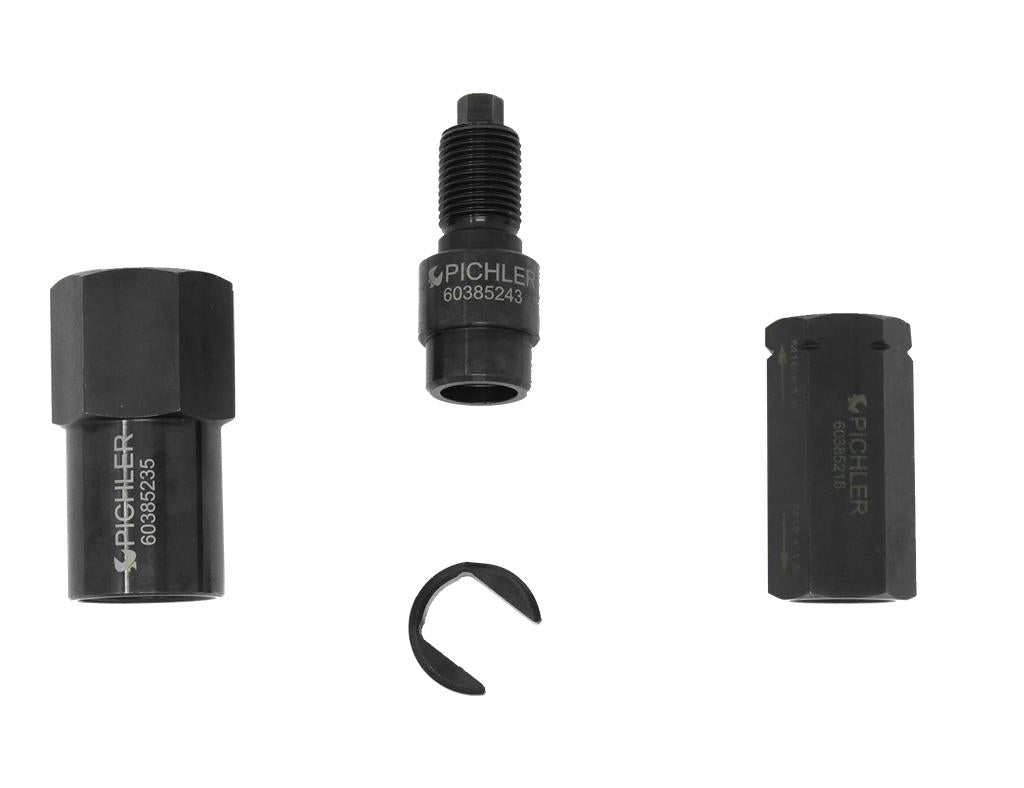

Injector removal tool for safe removal of Bosch injectors with piezo control, installed in BMW engines.
The double fixing grip reduces the risk of shearing off the injector above the cylinder head.

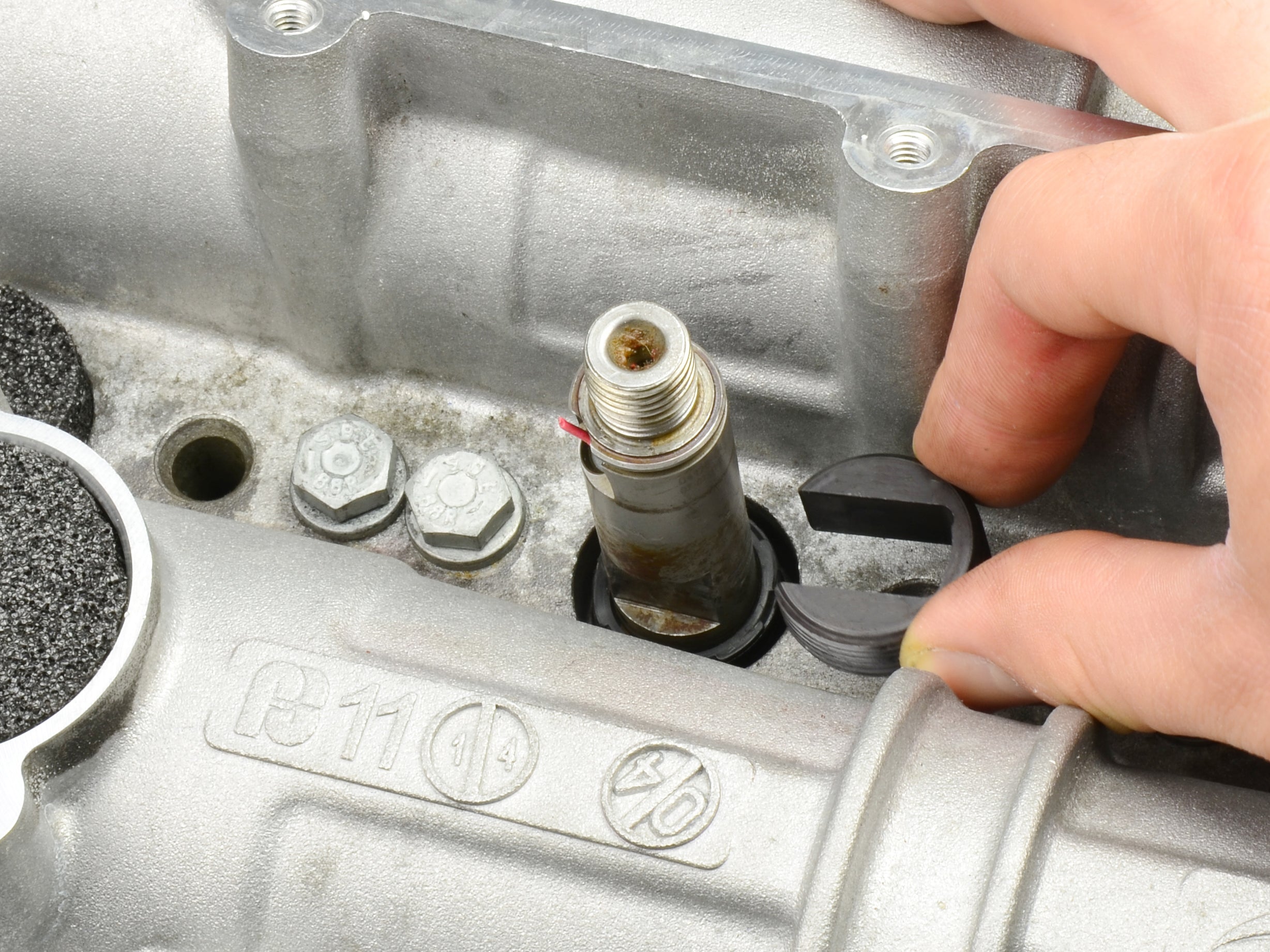

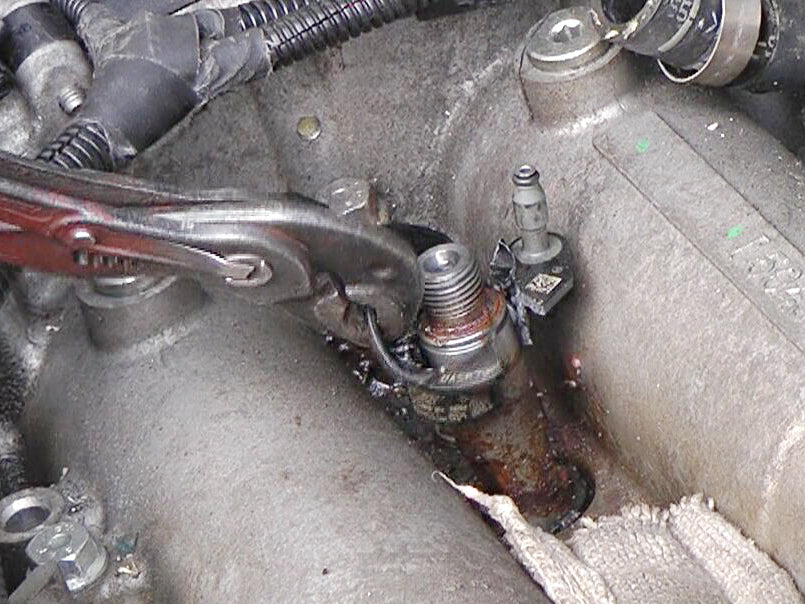

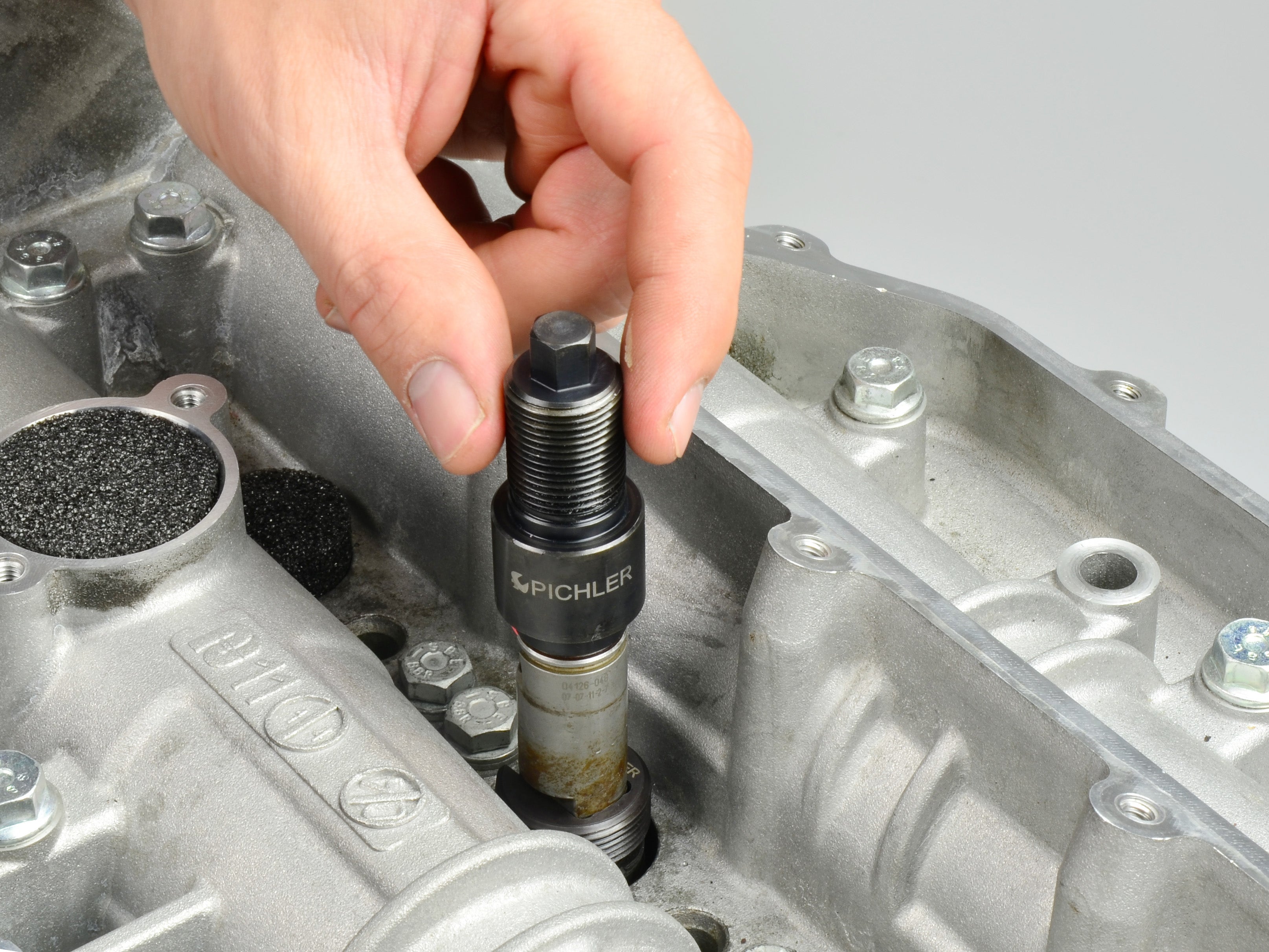

The electrical connection on the injector head must be destroyed and removed for this purpose. Afterwards, the pull connection is attached to the flat spot instead of the injector holding fork, and the screw-on adapter is attached to the diesel line connection thread.

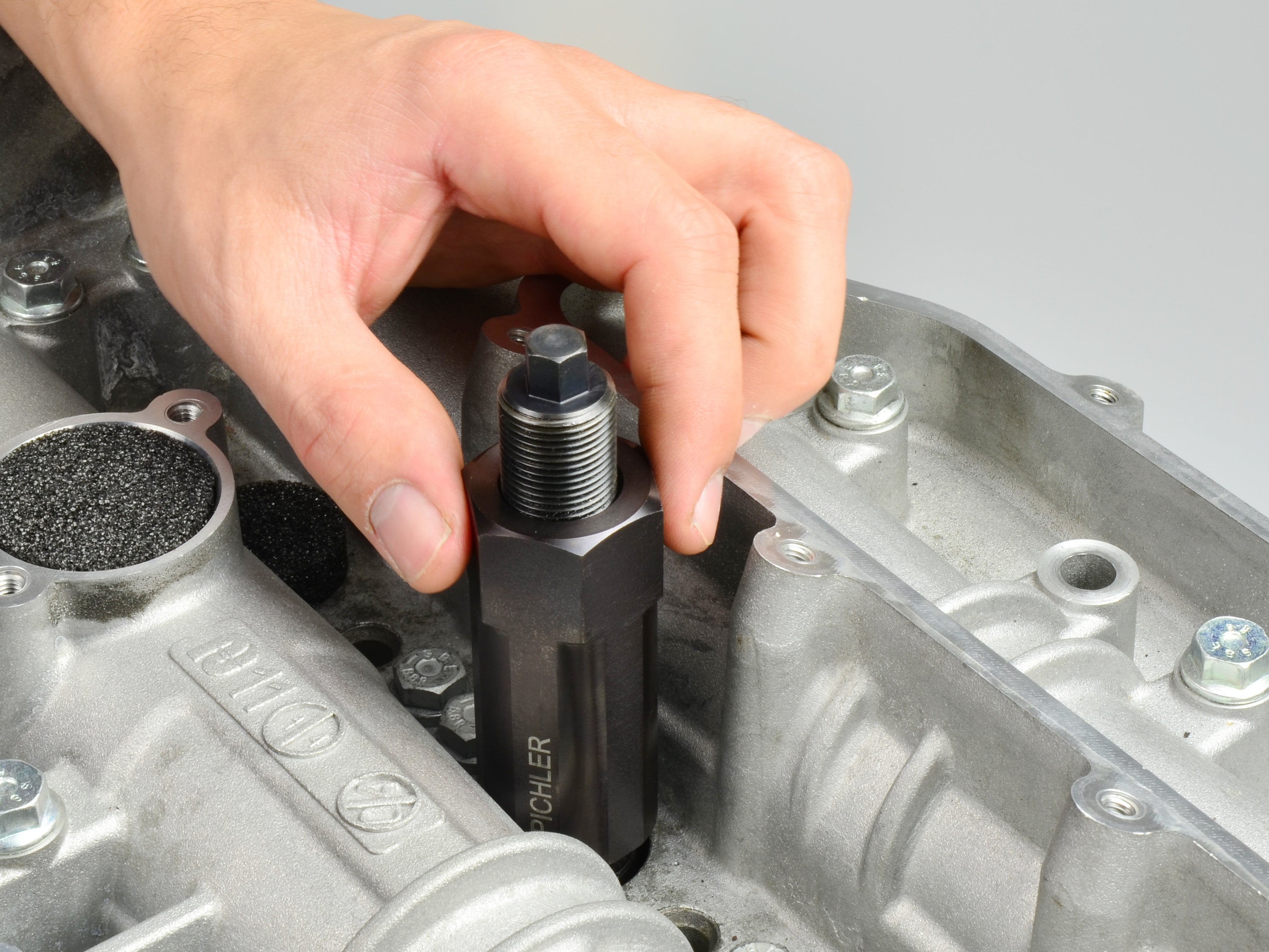

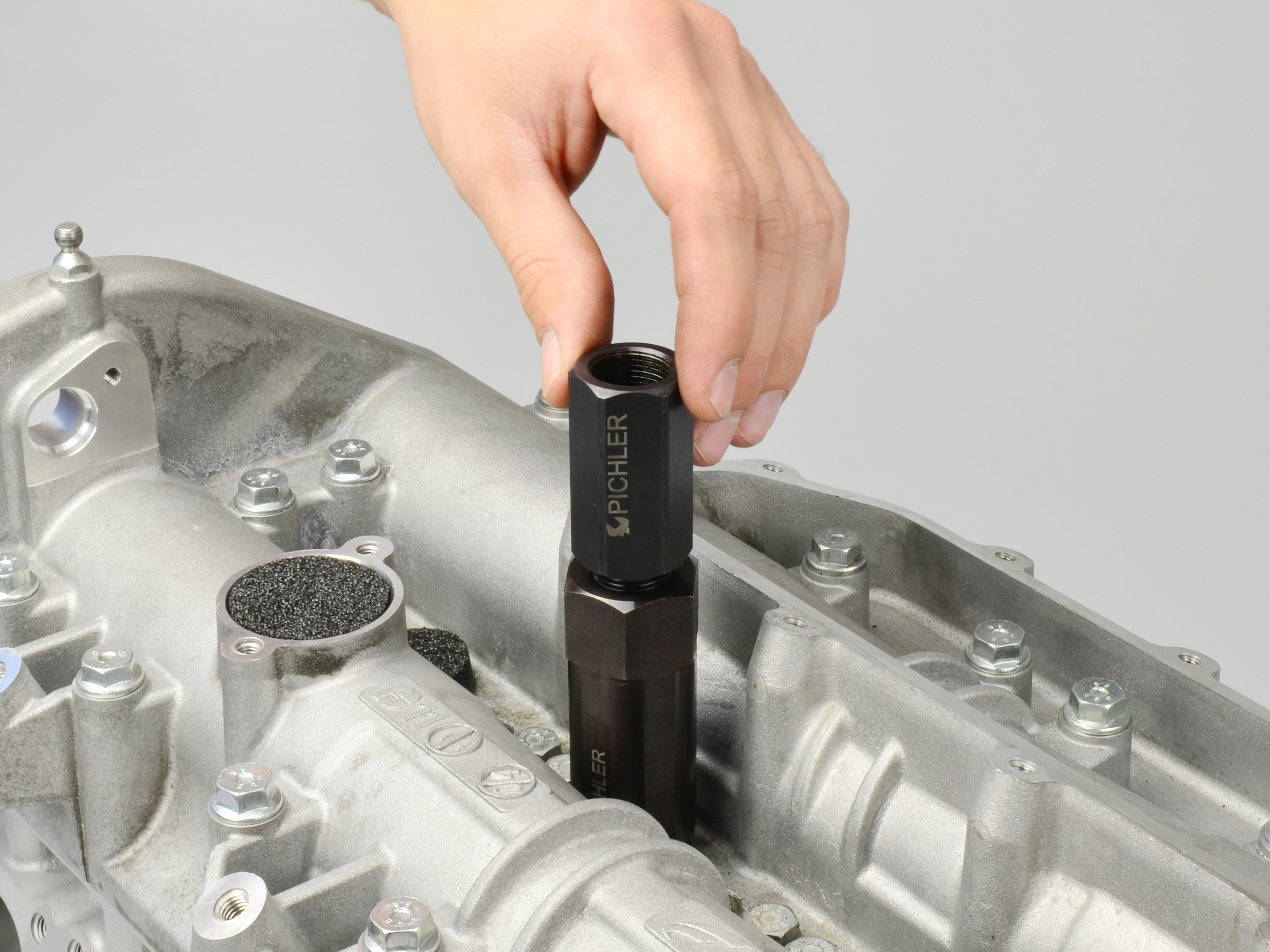

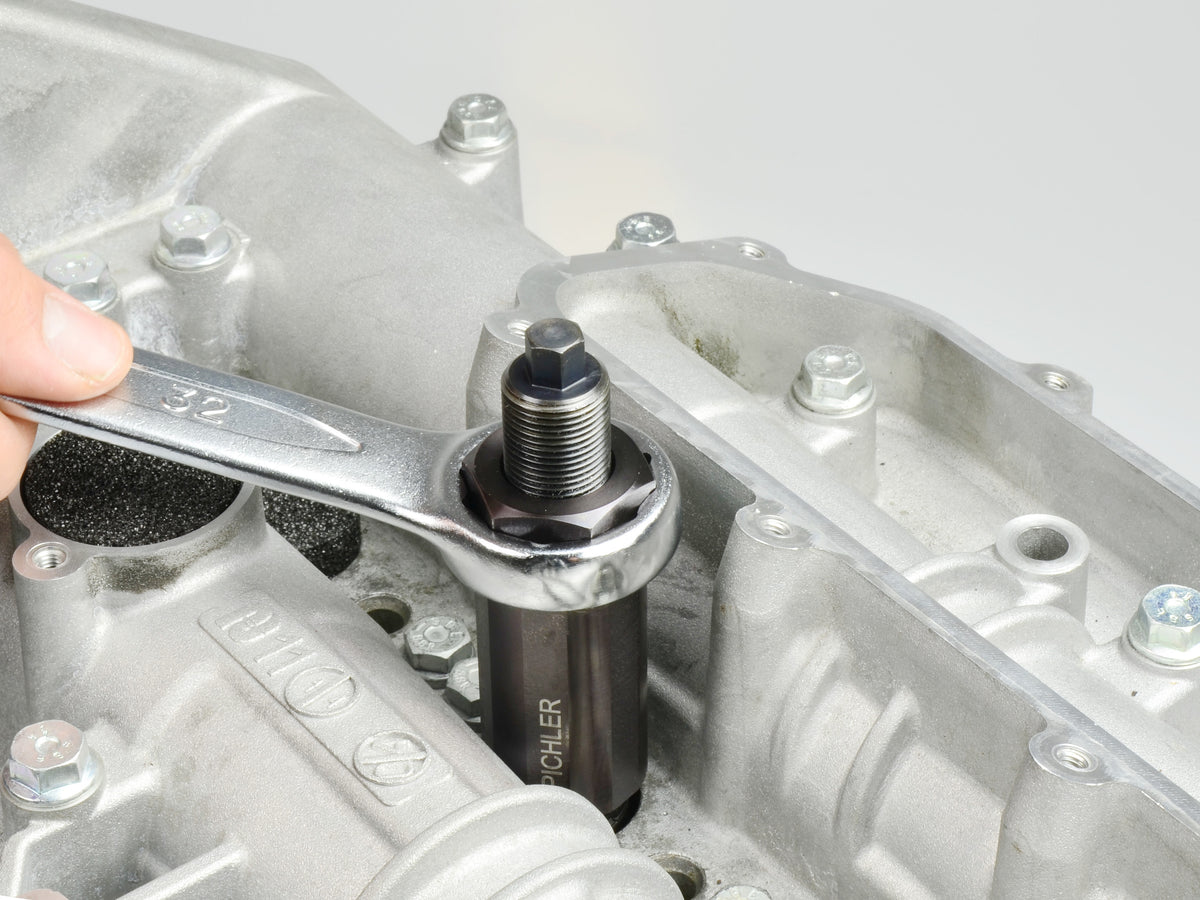

The connecting sleeve is screwed to the two tie fittings and tightened . The extension nut
is used to hold the extraction spindle (when using 60385395), or to hold the slide hammer (when using 6148790 / 6148800).
